Flame Arrester for Petroleum Storage Tank is a safety device designed for petroleum storage tanks to prevent flame or explosion waves from spreading inside or outside the tank through the tank's breathing valve, vent or discharge line, thereby preventing the expansion of a fire or explosion accident.
Petroleum Storage Corrugated type pipe arrester Tank Flame arresters are usually constructed with wire mesh, corrugated plates or porous plates, which use their special physical properties to extinguish or inhibit the spread of the flame. When the flame tries to pass through the flame arrester, it is broken down into smaller flame units, which gradually lose energy under the cooling and depletion of the flame arrester and eventually die out.
In the process of oil storage and transportation, due to various reasons (such as static electricity, lightning strikes, operation errors, etc.) may cause fire or explosion accidents.Flame Arresters Once the fire spreads to the inside of the storage tank, it will cause huge economic losses and casualties. Therefore, the installation of flame arrester on the oil storage tank is one of the important measures to ensure production safety and prevent fire and explosion accidents.
Structural characteristics
1. The flame arrester has reasonable structure, light weight, FUSHI resistance and qualified FANBAO performance
2, 13 consecutive subsonic flame tests can resist fire each time.
3, easy maintenance, easy installation. Shell water pressure test qualified.
4, the burning resistance is qualified, the burning resistance test for 1 hour without tempering phenomenon.
5, the flame arrester core is made of stainless steel, FUSHI resistant, easy to clean.

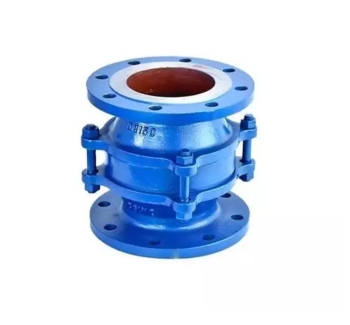

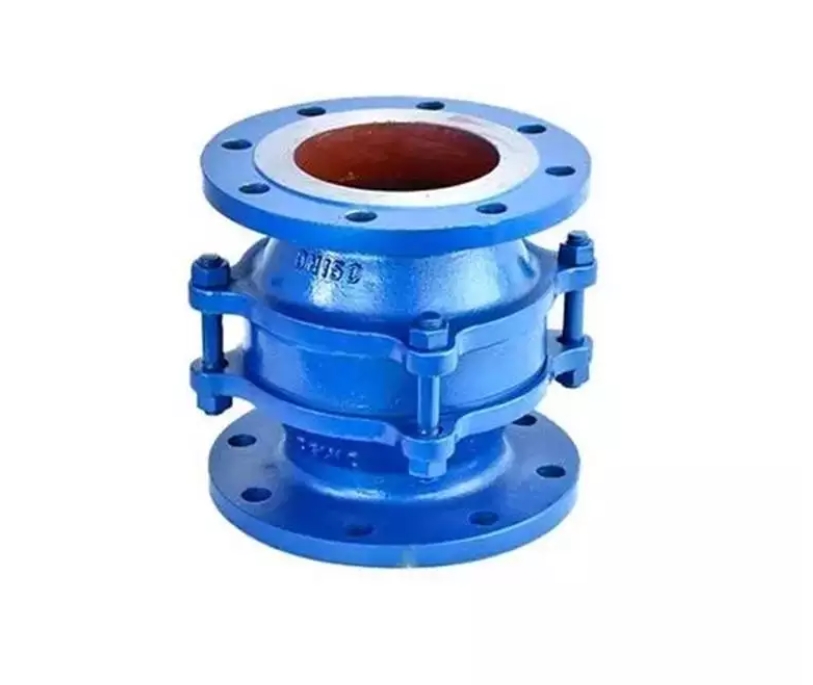

Flame Arrester for Petroleum Storage Tank
