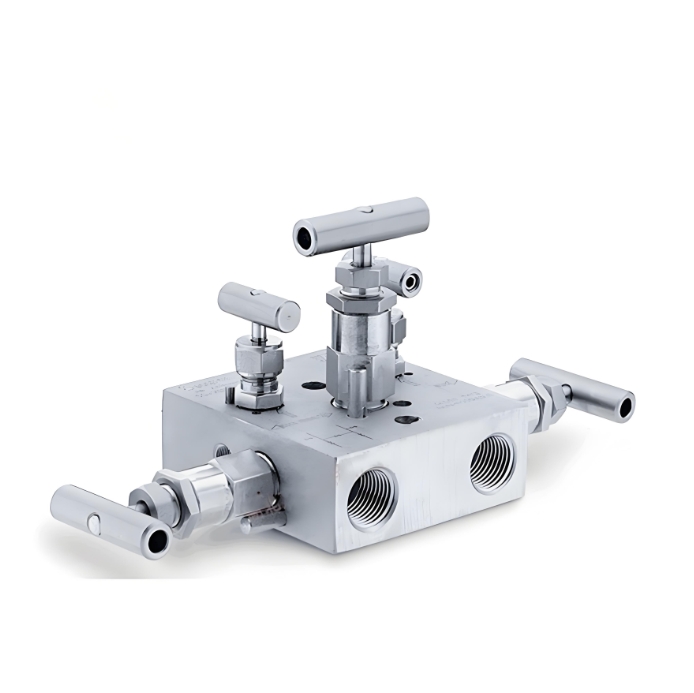

five-valve set is a device consisting of five valves, which usually include high and low pressure valves, balance valves, and two check (blowdown) valves. These valves work together to achieve precise control of fluid or gas flow.
5-way manifold valves 5vr series Function and application
Feature
High and low pressure valves: located on either side of the five-valve set, they are used to control the flow of fluid or gas into the high pressure side and low pressure side of the transmitter.
Balancing valve: located between the high and low pressure valves, it is used to balance the pressure on the high and low pressure sides to avoid excessive pressure difference in the measurement process.
Calibration (blowdown) valve: respectively connected to the high and low pressure side, used for calibration or blowdown operation of the transmitter when necessary.
5-way manifold valves 5vr series Because of its versatility, easy operation, easy maintenance and high safety, the five-valve group is widely used in the production process of petroleum, chemical, electric power, metallurgy, pharmaceutical and other industries.

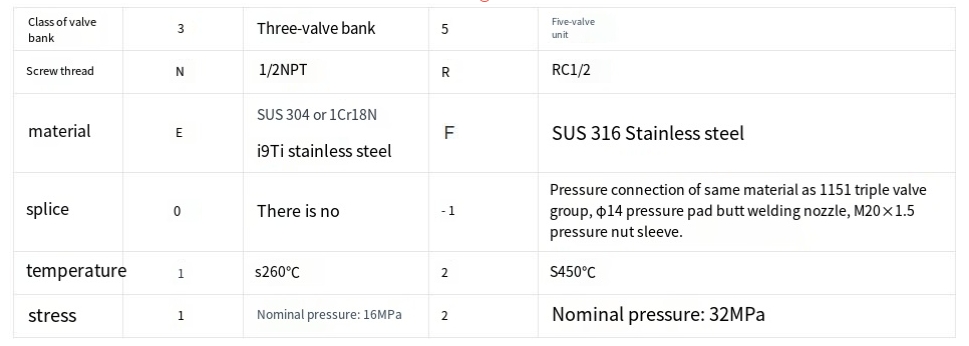

5-way manifold valves 5vr series technical specification：
