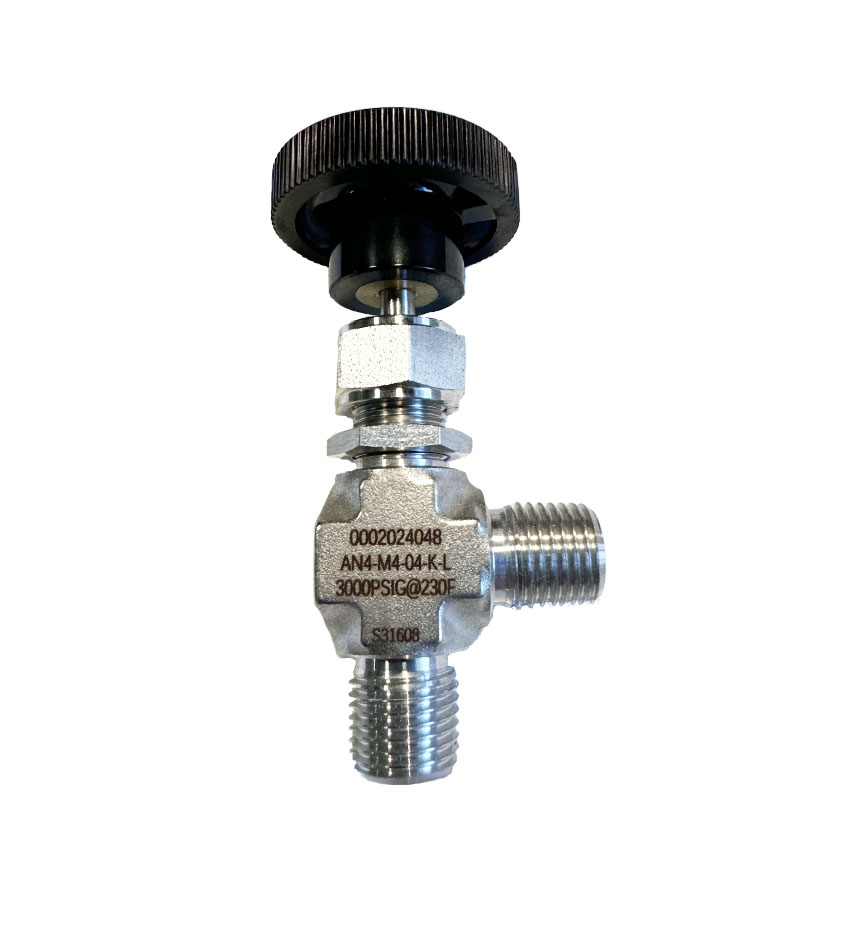

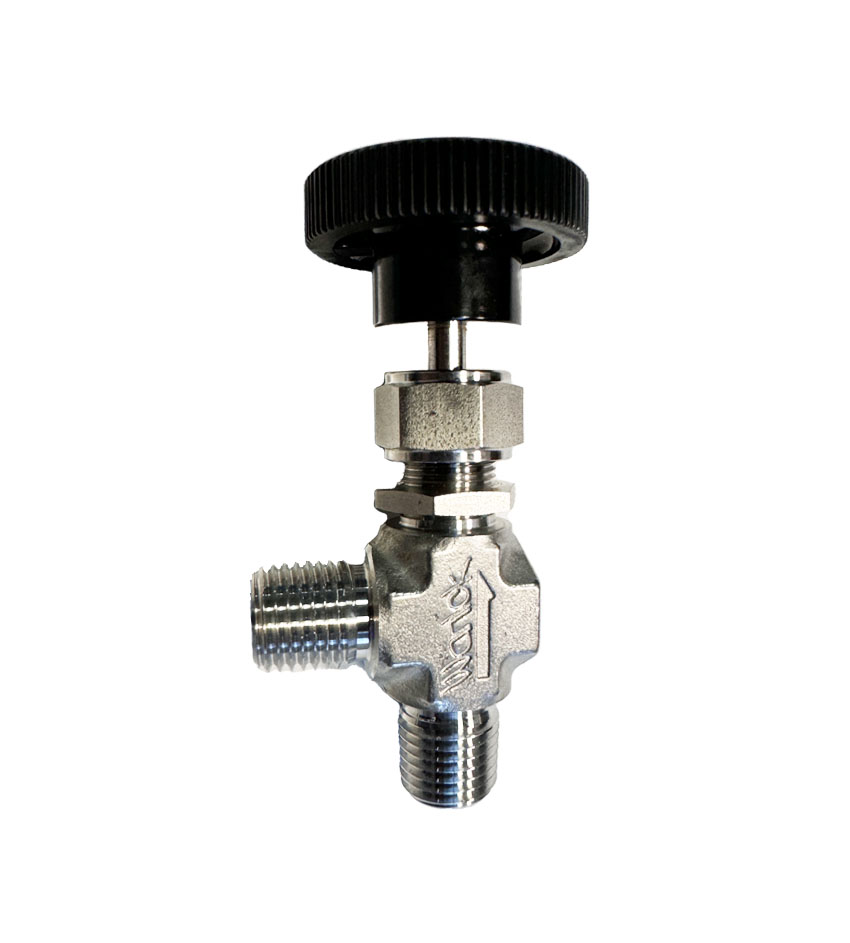

Stainless steel Needle Valve Right-angle Male Made of stainless steel, the valve body is designed with right-angle structure and is connected to the piping system by external threads. With its precise flow control and reliable sealing performance, this valve has been widely used in many industrial fields such as petroleum, chemical, electric power and metallurgy.
Features:
■ Compact, rugged design with angled flow
pattern
■ Protective handle prevents dirt from entering
valve function area
■ Diameter sizes 0.093 t- 0.218 in. (2.4 -5.6
mm)
■Flow coefficient (Cv) 0.12 -0.53
■ Female NPT, male NPT, tube fittings and
mixed port connections available
Temperature rating:
Butadiene rubber, silicone and ethylene
propylene O-rings：Maximum 121°C (250°F)
Rubber O-rings ： -53 - 121°C (-65 -250°F)
Pressure rating:
316 stainless steel: 3000-2065 psig
use stainless steel materials,Sampler Sparepart such as 304 stainless steel, 316L stainless steel, etc., these materials have excellent corrosion resistance and high temperature resistance, can adapt to a variety of corrosive media and high temperature environment.
The spool and sealing surface are usually made of cemented carbide material to ensure long-term stable sealing performance and wear resistance.
Stainless steel Needle Valve Right-angle Male Technical parameter:
oil, water, gas and other non-corrosive or corrosive media
