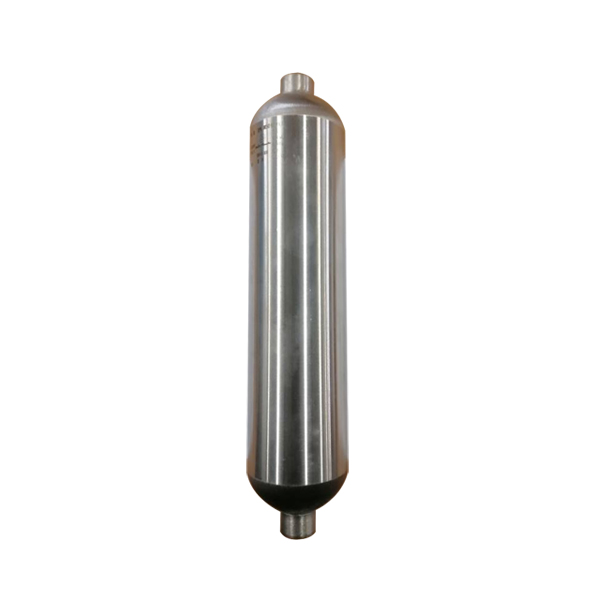

500ml stainless steel sampling cylinder is a sampling container made of stainless steel with excellent corrosion and high temperature resistance. The design strictly follows relevant industry standards, such as TSG R0004-2009 "Stationary Pressure Vessel Safety Technical Supervision Regulations" and SH/T0233 "Liquefied Petroleum Gas Sampling Law", to ensure the safety and accuracy of the sampling process.
Stainless steel 500ML sample cylinder Technical parameter：

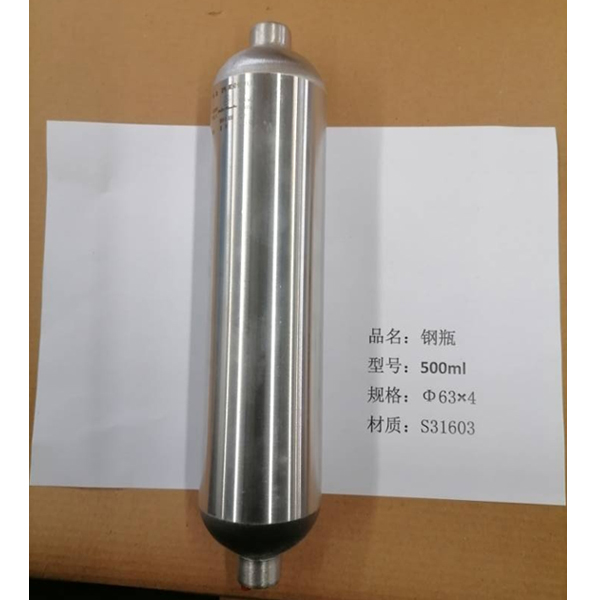

Product name: Cylinder
Model: 500ml
Specification: Φ63×4
Material: S31603
Volume: 500ml
Working pressure: between 4MPa and 20MPa.
Working temperature: -60℃ to +80℃
Material: 316L stainless steel
Application field
500ml stainless steel sampling cylinders are widely used in the following areas:
Petrochemical: Used for the collection, transportation and storage of toxic and harmful substances such as liquefied petroleum gas, liquefied natural gas, hydrogen sulfide, sulfur-containing sewage, hydrocarbons and gaseous or liquid samples such as nitrogen, oxygen, carbon dioxide.
Medical pharmaceutical:Sample Cylinders Used in the medical pharmaceutical industry for sampling and analysis of pharmaceutical raw materials, intermediates and finished products.
Research education: In the field of research and education, used in laboratory experiments for gas and liquid analysis.
Food inspection: In the process of food inspection, used for sampling and analysis of food raw materials, additives and finished products.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
