high-pressure sample cylinder is a container specifically designed to store and transport gas samples in high-pressure environments. They are usually made of a high-strength, corrosion-resistant material, 316L stainless steel, to ensure safety and stability under high pressure conditions.
High Pressure Sample Cylinders Gas Sampling Main feature:
High pressure tolerance: High pressure sample cylinders can withstand high internal pressures, usually in the working pressure range of 4Mpa to 20Mpa, and the pressure resistance can reach 7Mpa to 38Mpa.
Excellent material: mostly made of 316L stainless steel or 1Cr18Ni9Ti and other high-quality materials, these materials have good corrosion resistance and mechanical strength.
Safe and reliable: Some high-pressure sampling cylinders are also equipped with explosion-proof safety devices to cope with possible overpressure situations to ensure safe use.
Easy to clean:316L Small sample cylinder for gas the inner surface of the cylinder can be coated with non-stick materials such as PTFE to prevent the adsorption of trace elements in the sample, improve the anti-corrosion performance, and easy to clean.
High-pressure sample cylinders are widely used in laboratory and industrial environments, especially where high-pressure gas sampling is required. They are suitable for the sampling, storage and transportation of ethylene, propylene, butadiene, liquefied petroleum gas, natural gas and other gases and liquids under the same operating conditions.

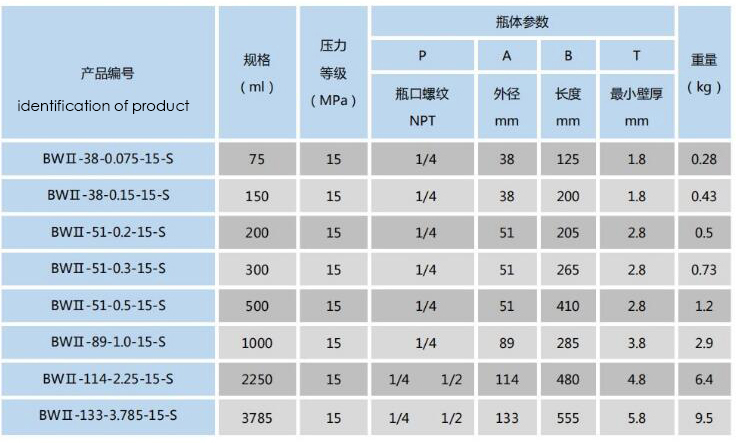

The volume specifications of high-pressure sample cylinders are diverse, including 100ml, 150ml, 200ml, 250ml, 300ml, 500ml, 1000ml, 2000ml, etc., to meet different sampling requirements.
There are two types of single-ended and double-ended openings. Single-ended open cylinders are typically used for one-way sampling, while double-ended open cylinders can be used for more complex sampling operations.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
According to different application requirements, sampling cylinders can be divided into a variety of types, ordinary sampling cylinders,custom sampling system vacuum sampling cylinders, explosion-proof sampling cylinders，Sample cylinders are usually made of high-strength, corrosion-resistant materials such as stainless steel (e.g. 316L or 1Cr18Ni9Ti). Its structure generally includes bottle body, valves, pressure gauges, anti-riot pieces and other components. Some sample cylinders can also be lined with anti-corrosion coating according to customer requirements to prevent trace elements in the sample from being absorbed by the stainless steel surface.
