Application field of explosion-proof pipeline flame arrester
Explosion-proof pipe arresters have important applications in a number of areas, including but not limited to:
A pipe that carries flammable gases
Flare system
Oil gas recovery system
Heating furnace fuel gas pipe network
Gas purification system
Coal mine gas discharge system
Strong fire resistance: can prevent the speed of no more than 45m/s through the flame, and can withstand 0.9Mpa water pressure test.
Stable performance: must pass 13 consecutive explosion resistance performance tests, each time can resist fire, fire resistance performance qualified; Fire resistance 1h no tempering, fire resistance qualified.
Nominal diameter: DN20~200mm
Nominal pressure: PN0.6~5.0MPa Operating temperature:≤480℃
Main material: carbon steel WCB, stainless steel 304,316
Applicable medium: class A, oil, hydrogen and oxygen
liquefaction, kerosene, diesel oil, methyl benzene, crude oil, etc
Connection type: flange connection (Il) internal thread connection (IIl) external thread connection (IV) Design standard:GB5908-86,GB1347-92
Flange standard:HG 20592-97,ANSI B 1.6, GB HGJ SH JB

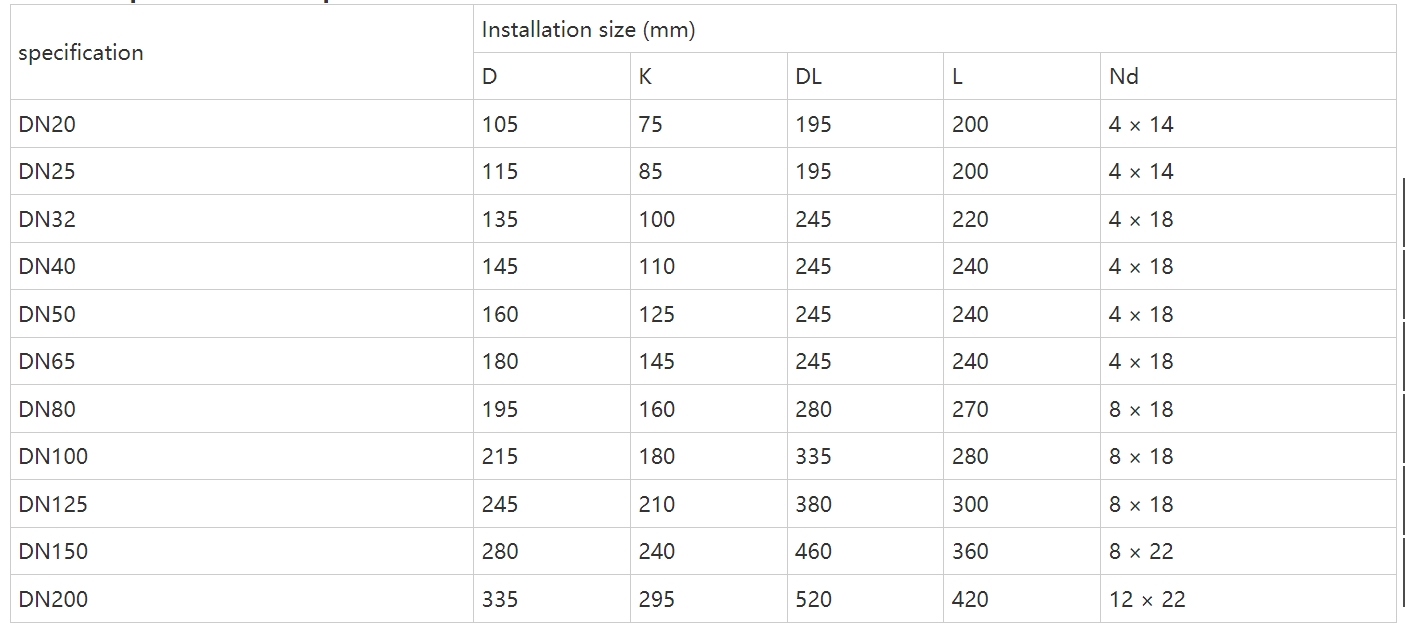

Explosion proof pipeline flame arresters size:

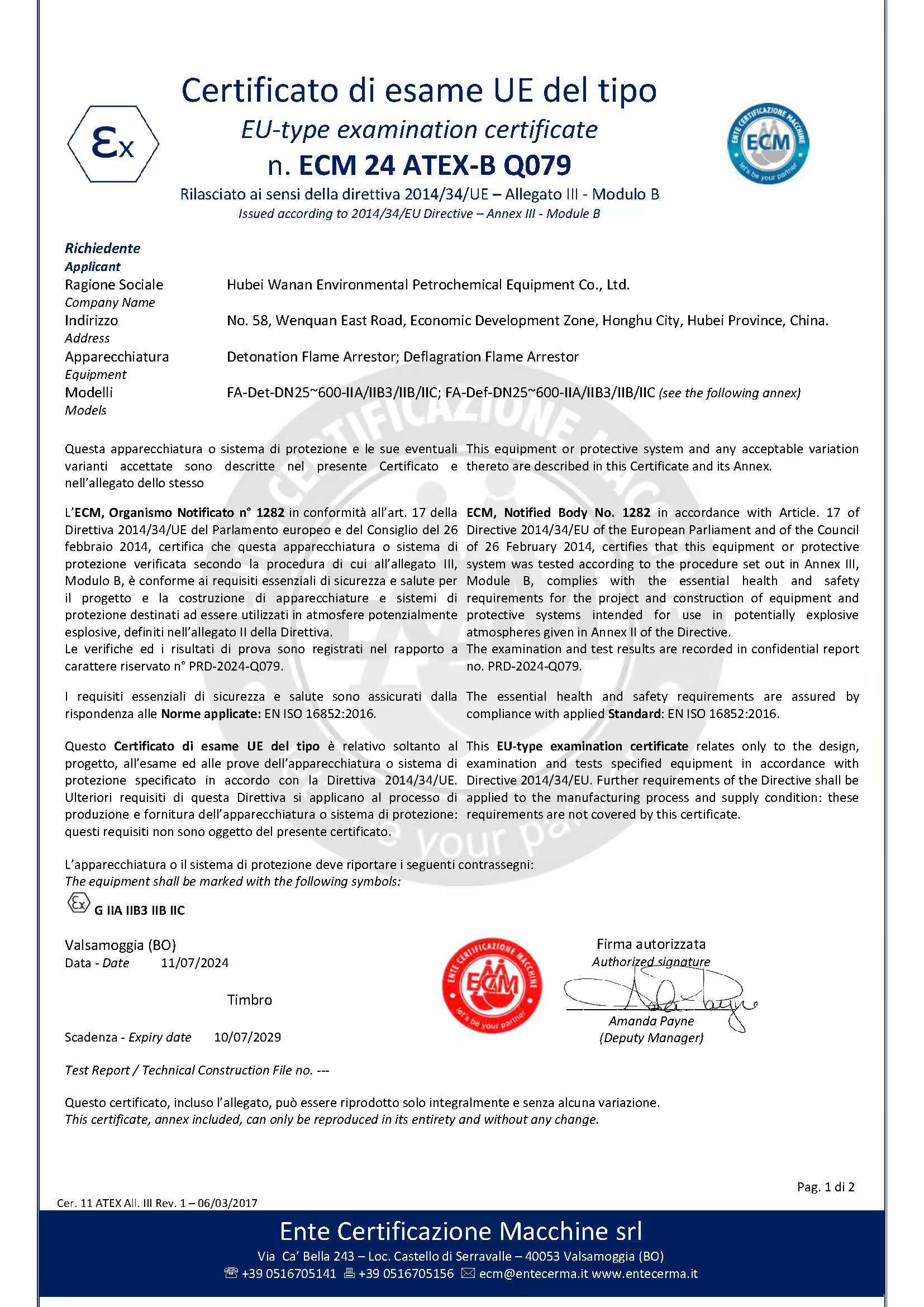

Eu test report on flame arrester:
DN100-DN600
