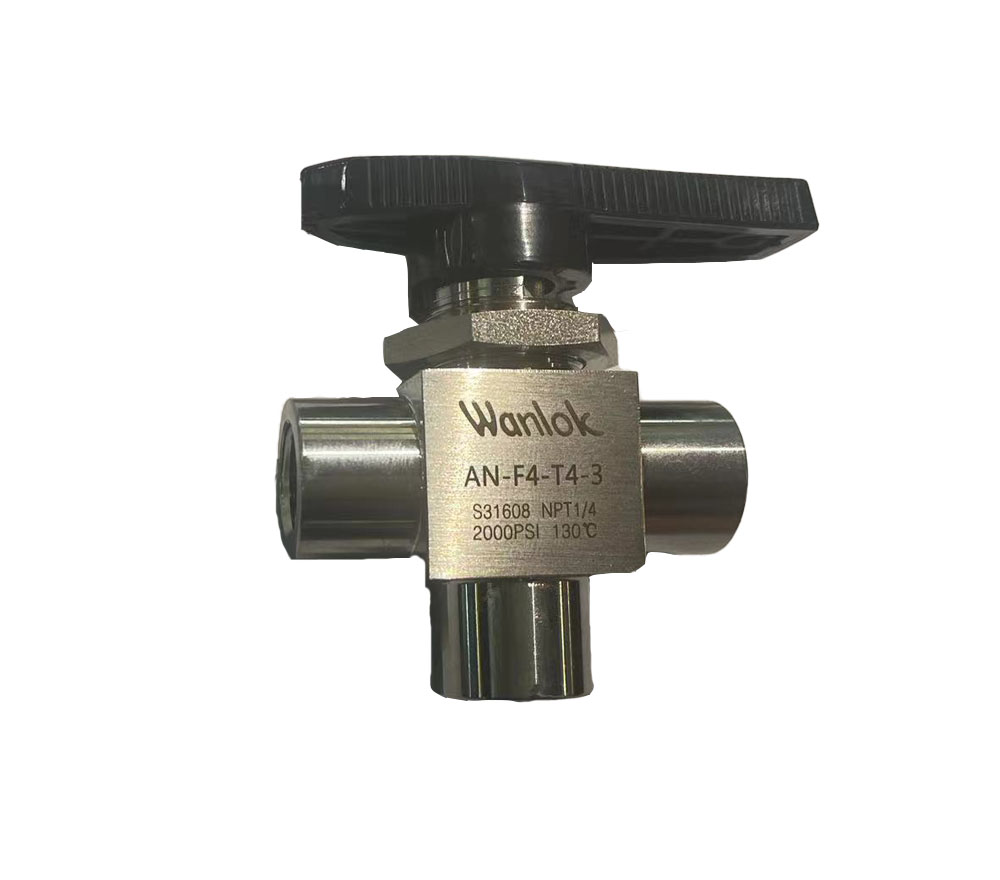

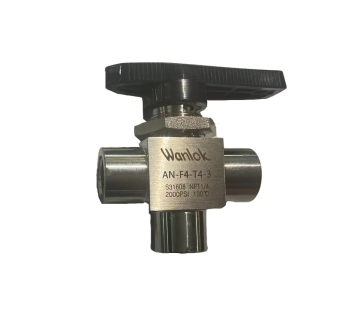

Three-way needle valve with internal thread is a special valve, which combines the characteristics of internal thread connection and three-way structure, and is widely used in occasions where precise control of fluid flow direction and flow rate is required.
The three-way needle valve with internal thread is a needle valve connected by internal thread, and its spool shape is similar to the tip of a needle, hence the name. It has one inlet and two outlets (or two inlet and one outlet), and can achieve a shunt or confluence of fluids. The valve body is connected with internal thread, which is easy to install and remove, and improves the sealing performance.
The working principle of the three-way needle valve with internal thread is similar to that of the globe valve. The spool moves up and down along the center line of the fluid, and the opening and closing of the valve are controlled or adjusted by rotating the handwheel. Turn the hand wheel clockwise to close the valve, counterclockwise to open the valve. Sampler Sparepart This adjustment makes three-way needle valves with internal threads very effective when precise control of fluid flow and pressure is required.
304 Ball Valve Three-Way Internal Thread 4 6 8 10 12 14 16mm 1/8" 1/4" 3/8" 1/2"
Adjustable Needle Valve 90 Degree Stainless Steel (Color : 14mm)
Precise control: By adjusting the position of the spool, precise control of fluid flow and pressure can be achieved.
Good sealing: The internal thread connection and the design of the needle spool make the valve have good sealing performance to prevent fluid leakage.
Strong adaptability: The three-way structure allows the valve to adapt to the needs of a variety of fluid flows and flows.
Easy installation and maintenance: The internal thread connection simplifies the valve installation and removal process, reducing maintenance costs.
Connection flange: Used to connect the sampler to other equipment or pipes.
Filter: In some cases,custum sampling system it may be necessary to install a filter before the sample tube to remove impurities.
Brackets and fasteners: Used to support and hold the sampler to ensure its stable operation.
